Product Summary

The EZ1580CM is a high performance positive voltage regulator is designed for use in applications requiring very low dropout voltage at 7, 5, 3 and 1.5 amps. The EZ1580CM is a five terminal adjustable voltage regulator available in the popular 5 pin TO-220 and TO-263 plastic packages. Applications of the EZ1580CM include: Microprocessor supplies, Split plane microprocessor supplies, Pentium Processor P54C and P5, PowerPC 603/604EV and AMD5k86, AMDK6.

Parametrics

EZ1580CM absolute maximum ratings: (1) Input Voltage Vpower, VP: 7V, Vcontrol: 13.2V; (2) Power Dissipation PD: internally limited; (3) Operating Junction Temperature Range Tj: 0 to 125°C; (4) Storage Temperature Range Tstg: -65 to 125°C; (5) Lead Temperature (Soldering) 10 Sec.TLEAD: 260°C.

Features

EZ1580CM features: (1) 540mV dropout @ 7A in dual supply mode; (2) Remote sense operation; (3) Fast transient response; (4) 0.5% initial accuracy; (5) 5 Pin TO-220 and TO-263 packages.

Diagrams

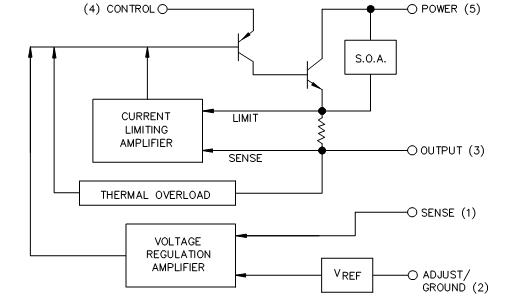

EZ1580CM Block Diagram"
