Product Summary

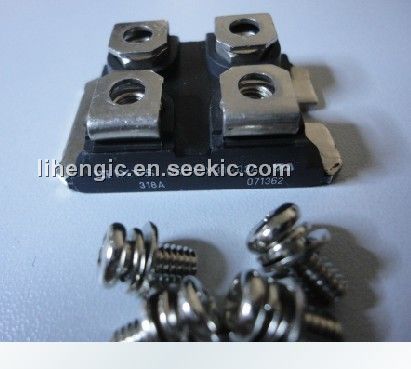

DSEP2X31-03A is a HiPerFERD epitaxial diode with soft recovery. Applications of the DSEP2X31-03A include: antiparallel diode for high frequency switching devicesl antisaturation diode, snubber diode, free wheeling diode in converters and motor control circuits, inductive heating and ultrasonic cleaners and welders.
Parametrics
DSEP2X31-03A absolute maximum ratings: (1) Tc=110°C; rectangular, d = 0.5A, IFRMS: 70A, IFAVM: 30A; (2) Tvj=45°C; tp=10ms (50Hz) , sine: 300A; (3) Tvj=25°C, non-repetitive IAS=3A; L=180μH, EAS: 1.2mJ; (4) VA=1.5.VR typ.; f=10kHz; repetitive, IAR: 0.3A; (5) Tvj: -40 to +150°C, Tvjm: 150°C, Tstg: -40 to +150°C; (6) Tc=25°C, Ptot: 100W; (7) 50/60 Hz, RMS IISOL≤1mA, VISOL: 2500V.
Features
DSEP2X31-03A features: (1) International standard package miniBLOC; (2) Isolation voltage 2500V; (3) UL registered E 72873; (4) 2 independent FRED in 1 package; (5) Planar passivated chips; (6) Very short recovery time; (7) Extremely low switching losses; (8) Low IRM-values; (9) Soft recovery behaviour.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DSEP2x31-03A |
Ixys |
Rectifiers 60 Amps 300V |
Data Sheet |
Negotiable |
|
||||
