Product Summary
CXA3221AN-T4 is an RX gain control amplifier suitable for CDMA cellular/PCS phone. And CDMA cellular/PCS phone is one kind of applications of the CXA3221AN-T4.
Parametrics
CXA3221AN-T4 absolute maximum ratings: (1) Supply voltage VCC: 6V; (2) Operating temperature Topr: -55 to +125°C; (3) Storage temperature Tstg: -65 to +150°C; (4) Supply voltage range: -0.3V to 6V; (5) Logic input voltage: -0.3 to VCC + 0.3V; (6) Signal input voltage: -0.3V to VCC +0.3V; (7) Differential signal input voltage: 0 to 2.5V.
Features
CXA3221AN-T4 features: (1) Wide gain control range; (2) Linear gain slope; (3) Wideband operation (50MHz to 300MHz) ; (4) Very small package (8 Pin SSOP) ; (5) Low voltage operation; (6) Power save function included.

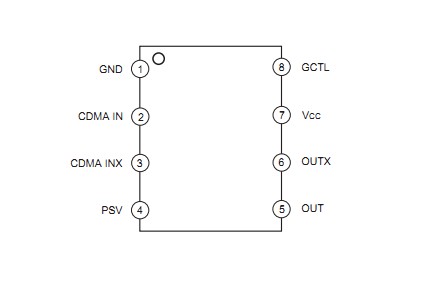

Diagrams
