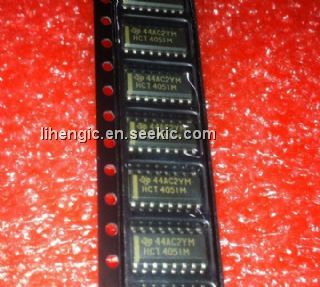

CD74HCT4051

multiplexer/demultiplexer, ±5V, ±50mA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.17 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 200 :	0.17 / Piece
400 ~ 800 :	0.16 / Piece
1000 ~ 2000 :	0.15 / Piece

PartNumber:: CD74HCT4051

Brand:: TEXAS ADVANCED OPTOELECTRONIC SOLUTIONS - TAOS | Pack: | D/C: 05+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Ally's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-21

From Other Seller

Part Number:CD74HCT4051
US $0.15 - 0.17
Quantity:

piece

Product Summary

The CD74HCT4051 is a high-speed CMOS logic anlog multiplexer/demultiplexer. The CD74HCT4051 is digitally control led analog switch which utilizes silicon gate CMOS technology to achieve operating speeds similar to LSTTL with the low power consumption of standard CMOS integrated circuits. The CD74HCT4051 contros analog voltages that may vary across the voltage supply range (i.e VCC to VEE) .

Parametrics

CD74HCT4051 absolute maximum ratings: (1) DC Supply Voltage, VCC-VEE: -0.5V to 10.5V; (2) DC Supply Voltage, VCC: -0.5V to +7V; (3) DC Supply Voltage, VEE: -0.5V to -7V; (4) DC Input Diode Current, IK, For VI ＜-0.5V or VI＞+0.5V: ±20mA; (5) DC Switch Diode Current, IOK: For VI ＜VEE -0.5V or VI＞VCC +0.5V: ±20mA; (6) DC Switch Current,For VI＞VEE -0.5V or VI＜VCC +0.5V: ±25mA; (7) DC V or Ground Current, ICC: ±50mA; (8) DC VEE Current, IEE: -20mA; (8) Maximum Junction Temperature: 150°C; (9) Maximum Storage Temperature Range: -65 to +150°C; (10) Maximum Lead Temperature (Soldering 10s) : 300°C.

Features

CD74HCT4051 features: (1) Wide Analog Input Voltage Range: ±5V Max; (2) Low Crosstalk between Switches; (3) Fast Switching and Propagation Speeds; (4) Wide Operating Temperature Range: -55 to 125°C; (5) Operation Control Voltage: 4.5V to 5.5V; (6) Switch Voltage: 0V to 10V; (7) Direct LSTTL Input; (8) Logic Compatibility: VIL=0.8V Max, VIH=2V Min; (9) CMOS Input Compatibilit: Ii≤1μA at VOL, VOH.
