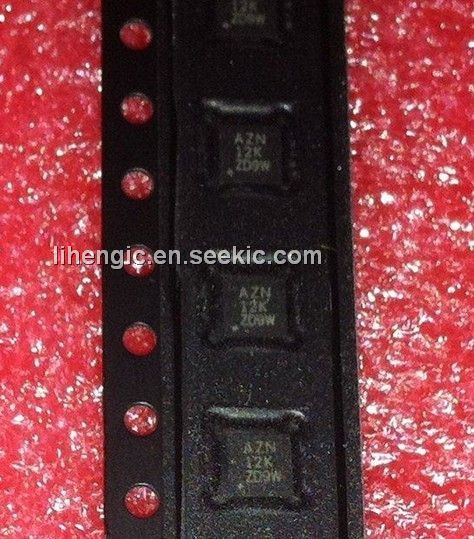

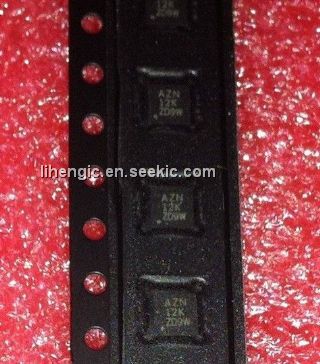

Product Summary

The BQ24010DRCR is a single-chip, Li-Ion charge management IC for handheld applications. The BQ24010DRCR charges the battery in three phases: conditioning, constant current, and constant voltage. Applications of the BQ24010DRCR include: Cellular Phones, PDAs, MP3 Players, Digital Cameras and Internet Appliances.

Parametrics

BQ24010DRCR absolute maximum ratings: (1) input voltage range: -0.3V to VCC; (2) Supply voltage range, (Vcc all with respect to Vss ) : -0.3V to 18V; (3) Supply voltage range, (VCC all with respect to VSS ) : ±0.5V; (4) Output sink/source current: 15mA; (5) Output current: 1.5A; (6) Operating free?air temperature range, TA, Junction temperature range, TJ: -40 to +125°C; (7) Storage temperature, Tstg: -65 to 150°C; (8) Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300°C.


Features

BQ24010DRCR features: (1) Small 3mm×3mm MLP (QFN) Package; (2) deal for Low-Dropout Designs for Single-Cell Li-Ion or Li-Pol Packs in Space Limited Applications; (3) Integrated Power FET and Current Sensor for Up to 1-A Charge Applications; (4) Reverse Leakage Protection Prevents Battery Drainage; (5) Integrated Current and Voltage Regulation; (6) ±0.5% Voltage Regulation Accuracy; (7) Charge Termination by Minimum Current and Time; (8) Battery Insertion and Removal Detection; (9) Works With Regulated and Unregulated Supplies; (10) Short-Circuit Protection.

Diagrams

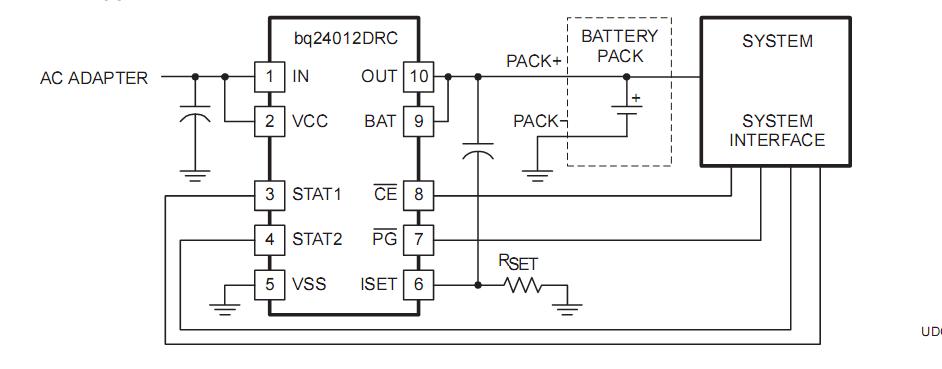

BQ24010DRCR Circuital
