Product Summary

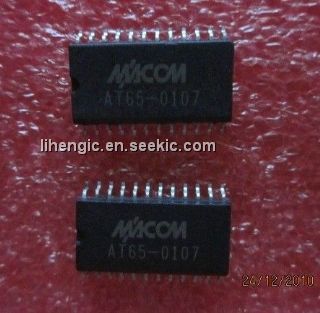

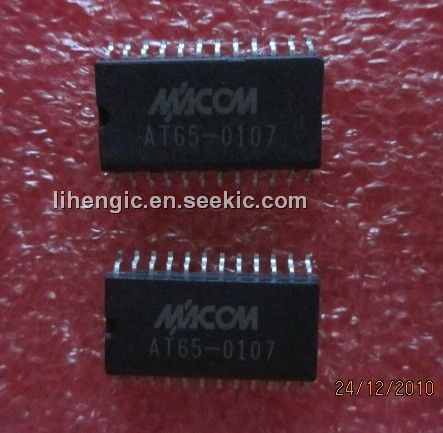

The AT65-0107 is a GaAs FET 6-bit digital attenuator with a 0.5 dB minimum step size and a 31.5dB total attenuation range. The AT65-0107 is in a SOIC-24 wide ody, plastic surface mount package. The AT65-0107 is ideally suited for use where accuracy, fast speed, very low power consumption and low costs are required.
Parametrics
AT65-0107 absolute maximum ratings: (1) Max. Input Power: +27dBm (0.05GHz) , 0.5 to 2.0GHz: +34dBm; (2) +Vcc: +5.5V; (3) -Vee: -8.5V; (4) Logic Voltages: -0.5V to Vcc to +0.5V; (5) Control Voltage: -0.5V to Vcc to +0.5V;(6) Operating Temperature: -40 to +85°C; (7) Storage Temperature: -65°C to +125°C.
Features
AT65-0107 features: (1) Attenuation: 0.5 dB Steps to 31.5dB; (2) Low DC Power Consumption; (3) Plastic SOIC, Wide Body, SMT Package; (4) Integral TTL Driver; (5) 50 ohm Impedance; (6) Test Boards are Available; (7) Tape and Reel Packaging Available.

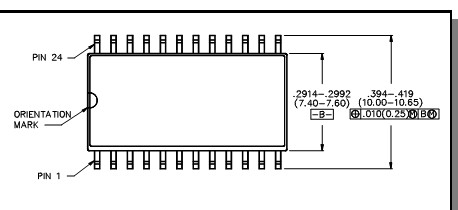

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT65-0107 |
Other |
|
Data Sheet |
Negotiable |
|
||||
