Product Summary

The AN5276 is a monolithic integrated circuit designed for 5.0 W (19 V, 8Ω ) output audio power amplifier. The AN5276 is a dual channel SEPP IC suitable for stereo operation in TV application.

Parametrics

AN5276 absolute maximum ratings: (1) Supply voltage VCC: 26V; (2) Supply Current ICC: 4.0A; (3) Power dissipation PD: 37.5W; (4) Operating ambient temperature Topr: -25 to +75°C; (5) Storage temperature Tstg: -55 to +150°C.

Features

AN5276 features: (1) Few external components: No Boucherot cells(output C, R) , No Bootstrap Capacitors, No Negative Feeback Capacitor; (2) Built-in muting circuit; (3) Built-in stand-by circuit; (4) Built-in various protection circuits (Load-short, thermal, over-voltage and current) ; (5) High ripple rejection(55dB) ; (6) Compatible with AN5275, AN5277; (7) Operating voltage range 10 V to 24 V(19 V typ.) .

Diagrams

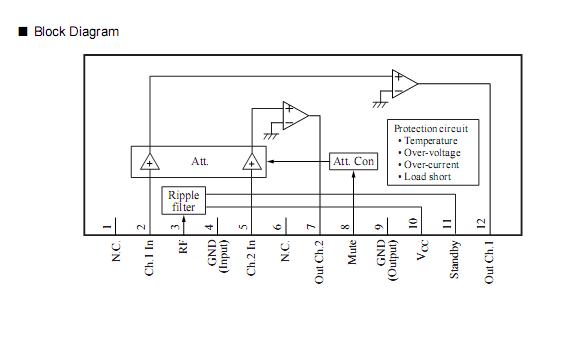

AN5276 Block Diagram

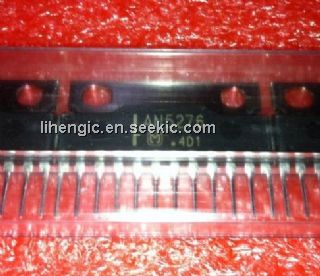

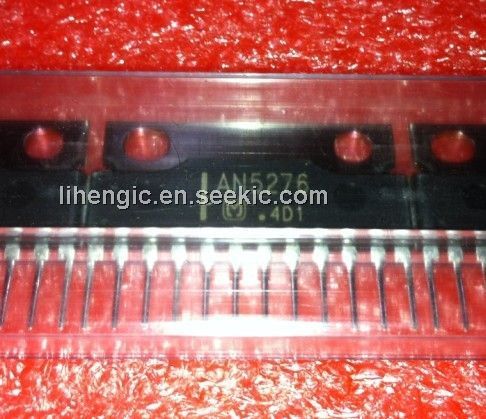

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AN5276
AN5276

IC AUDIO AMP 2CH 5W SIL-12 W/FIN
Data Sheet
0-1: $1.36
1-25: $1.10
25-100: $0.99
100-250: $0.88
250-500: $0.77
500-1000: $0.64
1000-2500: $0.63
