Product Summary

The 40CPQ045 is a center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology of the 40CPQ045 allows for reliable operation up to 150°C junction temperature. Typical applications of the 40CPQ045 are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

Parametrics

40CPQ045 absolute maximum ratings: (1) Max. Average Forward Current IF (AV) : 40A (50% duty cycle @Tc = 120°C, rectangular wave form) ; (2) Max. Peak One Cycle Non-Repetitive Surge Current (Per Leg) IFSM: 3500A (5μs Sine or 3μs Rect. pulse) , 430A (10ms Sine or 6ms Rect. pulse) ; (3) Non-Repetitive Avalanche Energy (Per Leg) : 27mJ (Tj=25°C, IAS=4Amps, L=3.4mH) ; (4) Repetitive Avalanche Current IAR: 4A (Current decaying linearly to zero in 1μsec Frequency limited by Tj max. VA=1.5×VR typical.

Features

40CPQ045 features: (1) 150°C Tj operation; (2) Center tap TO-247 package; (3) High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (4) Very low forward voltage drop; (5) High frequency operation; (6) Guard ring for enhanced ruggedness and long term reliability.

Diagrams

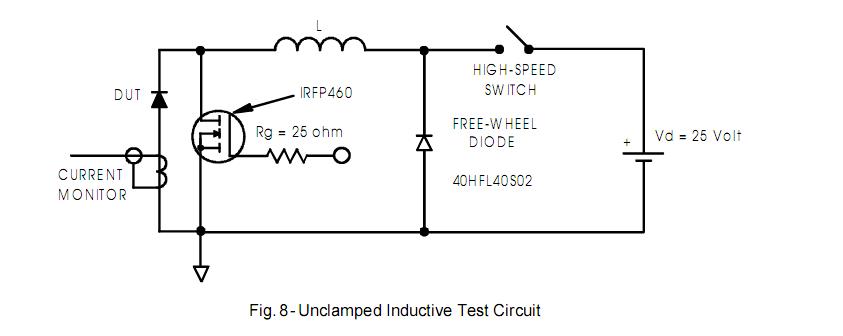

40CPQ045 Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

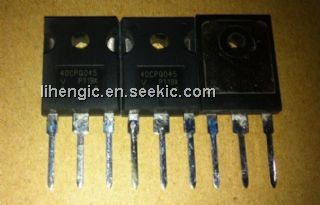

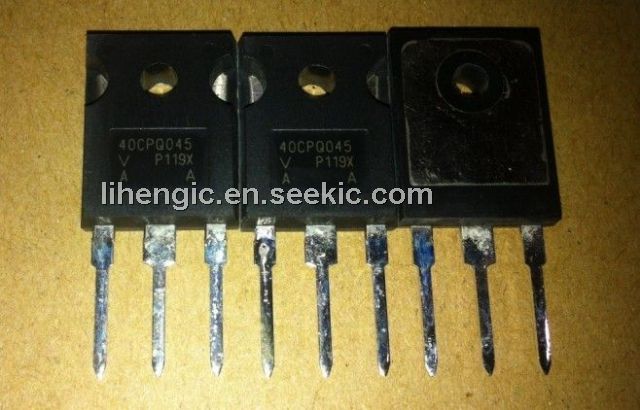

40CPQ045
40CPQ045
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40 Amp 45 Volt Common Cathode
Data Sheet
Negotiable
40CPQ045PBF
40CPQ045PBF

DIODE SCHOTTKY 45V 20A TO247AC
Data Sheet
0-1: $3.88
1-10: $3.47
10-25: $3.12
25-100: $2.84
100-250: $2.56
250-500: $2.30
500-1000: $1.94
1000-2500: $1.84
2500-5000: $1.77
