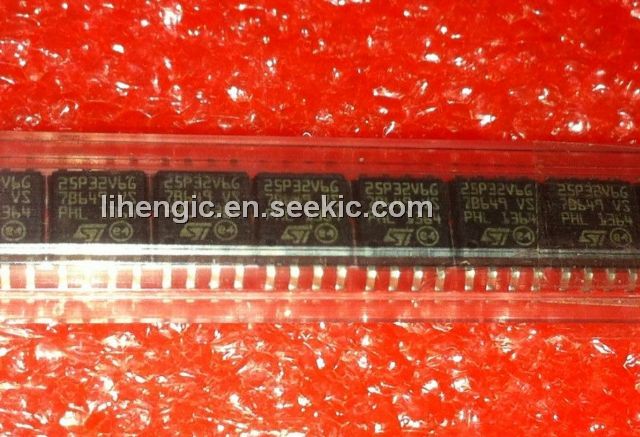

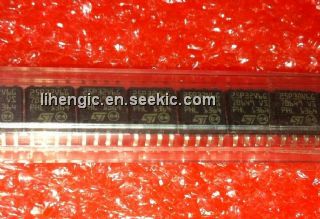

M25P32-VMW6TG

flash memory, 75MHz, 9V, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.57~0.67 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 100 :	0.67 / Piece
100 ~ 1000 :	0.63 / Piece
1000 ~ 6300 :	0.57 / Piece

PartNumber:: M25P32-VMW6TG

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 6350/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Ally's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-16

From Other Seller

Part Number:M25P32-VMW6TG
US $0.57 - 0.67
Quantity:

piece

Product Summary

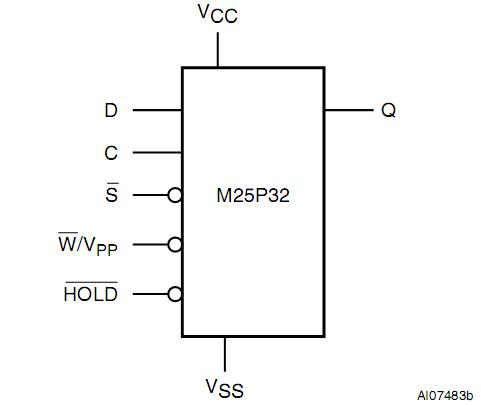

The M25P32-VMW6TG is a 32 Mbit (4Mx8) Serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The M25P32-VMW6TG can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The M25P32-VMW6TGcan be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.

Parametrics

M25P32-VMW6TG absolute maximum ratings: (1) Storage temperature Tstg: -65 to 150°C; (2) Input and output voltage (with respect to Ground) VIO: -0.6V to Vcc+0.6V; (3) Supply voltage Vcc: -0.6V to 4.0V; (4) Fast Program/Erase voltage Vpp: -0.2V to 10.0V; (5) Electrostatic Discharge Voltage (Human Body model) VESD: -2000 to 2000V.

Features

M25P32-VMW6TG features: (1) 32Mbit of Flash memory; (2) 2.7V to 3.6V single supply voltage; (3) SPI bus compatible serial interface; (4) 75MHz clock rate (maximum) ; (5) Sector Erase (512 Kbit) in 0.6s (typical) ; (6) Deep Power-down mode 1μA; (7) Electronic Signatures; (8) Hardware Write Protection of the memory area selected using the BP0, BP1 and BP2 bits; (9) More than 100 000 Erase/Program cycles per sector; (10) More than 20 year data retention.
