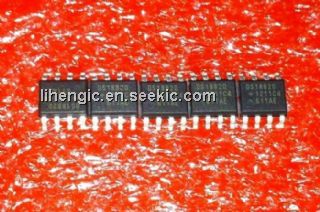

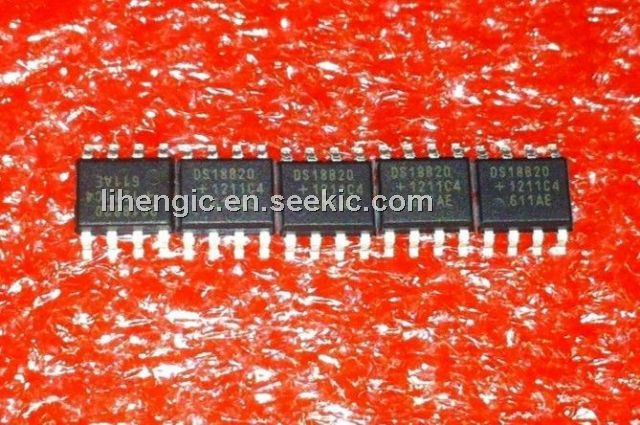

DS18B20Z

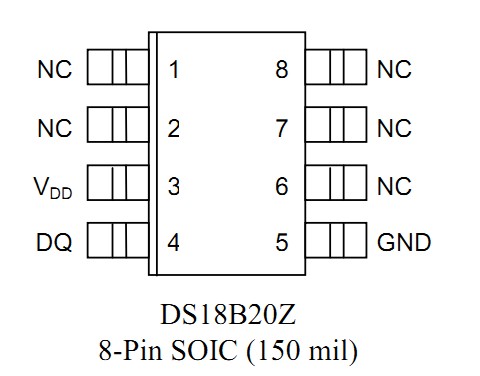

digital thermometer, -0.5V t0 +6V, 1.5mA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.99~2.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 20 :	2.45 / Piece
100 ~ 200 :	2.22 / Piece
500 ~ 1000 :	1.99 / Piece

PartNumber:: DS18B20Z

Brand:: DALLAS - DALLAS | Pack: | D/C: 11+

Availability:: Supply Ability: 9850/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Ally's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-04

From Other Seller

Part Number:DS18B20Z
US $1.99 - 2.45
Quantity:

piece

Product Summary

The DS18B20Z Digital Thermometer provides 9 to 12-bit (configurable) temperature readings which indicate the temperature of the device. Information is sent to/from the DS18B20Z over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor to a DS18B20. Because each DS18B20Z contains a unique silicon serial number, multiple DS18B20s can exist on the same 1-Wire bus.

Parametrics

DS18B20Z absolute maximum ratings: (1) Voltage on Any Pin Relative to Ground: -0.5V to +6.0V; (2) Operating Temperature: -55°C to +125°C; (3) Storage Temperature: -55°C to +125°C; (4) Soldering Temperature: See J-STD-020A specification.

Features

DS18B20Z features: (1) Unique 1-Wire interface requires only one port pin for communication; (2) Multidrop capability simplifies distributed temperature sensing applications; (3) Requires no external components; (4) Can be powered from data line. Power supply range is 3.0V to 5.5V; (5) Zero standby power required; (6) Measures temperatures from -55°C to +125°C. Fahrenheit equivalent is -67°F to +257°F; (7) Converts 12-bit temperature to digital word in 750ms (max.) ; (8) User-definable, nonvolatile temperature alarm settings; (9) Alarm search command identifies and addresses devices whose temperature is outside of programmed limits (temperature alarm condition) ; (10) Applications include thermostatic controls, industrial systems, consumer products, thermometers, or any thermally sensitive system.
