Product Summary

APL1581GC is a high performance positive voltage regulator is designed for use in applications requiring very low dropout voltage at 5Amp. The APL1581GC can provide a output voltage at the range of 1.25V to 2.55V where both 5V and 3.3V voltage supplies are available. Applications of the APL1581GC include: Microprocessor Supplies, Chip Set Supplies,VGA Card Power and LCD Monitor Power.

Parametrics

APL1581GC absolute maximum ratings: (1) Input Voltage VIN: 7V; (2) Control Voltage VCNTL: 7V; (3) Power Dissipation PD: Internally Limited; (4) Junction Temperature TJ: 150°C; (5) Storage Temperature Range TSTG: -65°C to +150°C; (6) Maximum Lead Soldering Temperature, 10 Seconds TSDR: 260°C.

Features

APL1581GC features: (1) Adjustable or Fixed Output; (2) 520mV typ. Dropout at 5A in Dual Power Voltage Mode; (3) Remote Sense Pin Available; (4) 2% Accuracy Over Temperature Range; (5) Build-in Over Temperature Protection; (6) Build-in Current Limit; (7) 5 Pin TO-220 and TO-263, TO-252, SOP-8-P Packages; (8) Lead Free and Green Devices Available (RoHS Compliant) .

Diagrams

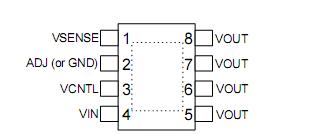

APL1581GC Pin Configuration
